Duotone eMast D/LAB Only 2026
Replacement carbon mast for the Duotone Foil Assist D/LAB system – supplied without any electric parts.
Only (w/o any electric parts)
Replacement Mast for Duotone Foil Assist D/LAB

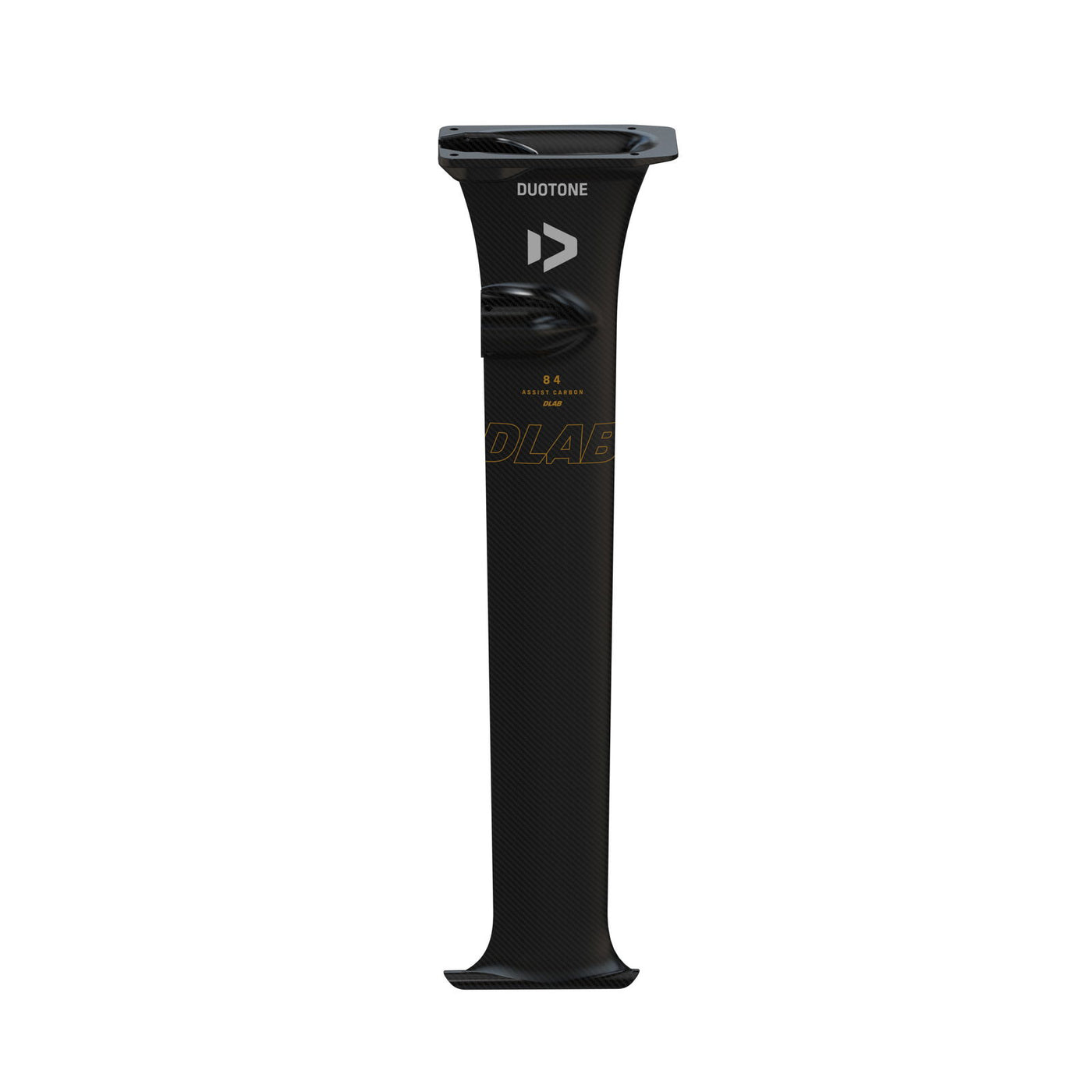

The Duotone eMast D/LAB Only 2026 is a spare carbon mast designed as a replacement part for the Duotone Foil Assist Mast D/LAB. This version includes the stiff carbon mast with integrated motor pod shape, but it is supplied without any electrical components.
This product is ideal if your original eMast D/LAB mast is damaged and you want to replace only the mast structure while reusing compatible electrical parts from your existing Foil Assist setup.
Important Compatibility Notice
This product does not function on its own. To complete a working Foil Assist system, additional components are required, including connector and internally routed cables, ESC, motor, bell, propeller, cable and leash.
If replacing the mast yourself, make sure all internal cables to the ESC are correctly waterproofed to avoid water damage and maintain full functionality.
Key Features
- Replacement mast only: Designed for replacing a damaged Duotone Foil Assist Mast D/LAB.
- No electric parts included: Supplied without connector, cables, ESC, motor, bell, propeller or leash.
- D/LAB construction: High-end carbon construction for stiffness, response and performance.
- Integrated motor pod shape: Designed for the Duotone Foil Assist system.
- Direct response: Stiff mast feel for precise foil control.
- Multi-discipline use: Suitable for assisted prone, downwind, wake and wing foiling when fully assembled.
Specifications
| Product | Duotone eMast D/LAB Only 2026 |
|---|---|
| Item Number | 40260-6306 |
| Size | 84 cm |
| Chord | 110 mm |
| Thickness | 14.5 mm |
| Screws | 3x M8x50 TX45 |
| Recommended Torque | 15 Nm M8 |
| Construction | HM Prepreg Carbon |
| Disciplines | Assisted Prone, Downwind, Wake & Wing Foil |
| Compatibility | D/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon |
Included / Not Included
Included: eMast D/LAB carbon replacement mast only.
Not included: Connector, internally routed cables, ESC, motor, motor bell, propeller, external cable and leash.
